4层框架结构教学楼,土木工程建筑结构毕业设计,长62.4米,宽17.4米,面积4355平方米

土木工程建筑设计说明书

建筑长62.4m,宽17.4m.一榀框架首层层高4.44m,二至四层层高3.6m,柱距3.9m,3跨,跨度7.5m,2.4m,7.2m;
一层:实验室7.8m*7.5m*2间,印刷室7.8m*7.5m*1间,会议厅7.8m*7.5m*1间,多媒体教室7.8m*7.5m*1间,电脑室7.8m*7.5m*1间,门厅7.8m*7.5m*1间,教室7.8m*7.5m*2间,男厕3.9m*7.5m*2间,女厕3.9m*7.5m*2间,医务处7.8m*7.5m*1间,清洁工具间3.9m*7.5m*1间,楼梯间3.9m*7.5m*2间,体育器材库3.9m*7.5m*1间,教室15.6m*7.5m*1间,教室7.8m*7.5m*1间;
二层:物理教研室7.8m*7.5m*1间,教室15.6m*7.5m*3间,生物教研室7.8m*7.5m*1间,电脑室7.8m*7.5m*1间,化学教研室7.8m*7.5m*1间,教室7.8m*7.5m*2间,清洁工具间3.9m*7.5m*1间,楼梯间3.9m*7.5m*2间,监控室3.9m*7.5m*1间,男厕3.9m*7.5m*2间,女厕3.9m*7.5m*2间;
三层:英语教研室7.8m*7.5m*1间,教室15.6m*7.5m*3间,历史教研室7.8m*7.5m*1间,电脑室7.8m*7.5m*1间,语文教研室7.8m*7.5m*1间,男厕3.9m*7.5m*2间,女厕3.9m*7.5m*2间,教室7.8m*7.5m*2间,清洁工具间3.9m*7.5m*1间,楼梯间3.9m*7.5m*2间,教导处3.9m*7.5m*1间;
四层:地理教研室7.8m*7.5m*1间,教室15.6m*7.5m*3间,政治教研室7.8m*7.5m*1间,电脑室7.8m*7.5m*1间,校长办公室7.8m*7.5m*1间,男厕3.9m*7.5m*2间,女厕3.9m*7.5m*2间,教室7.8m*7.5m*2间,清洁工具间3.9m*7.5m*1间,楼梯间3.9m*7.5m*2间,教材室3.9m*7.5m*1间;

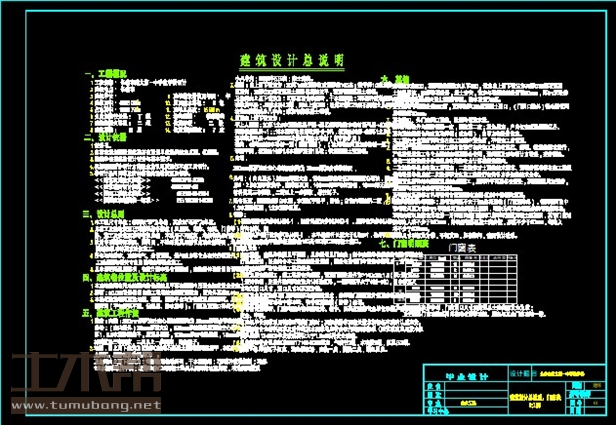

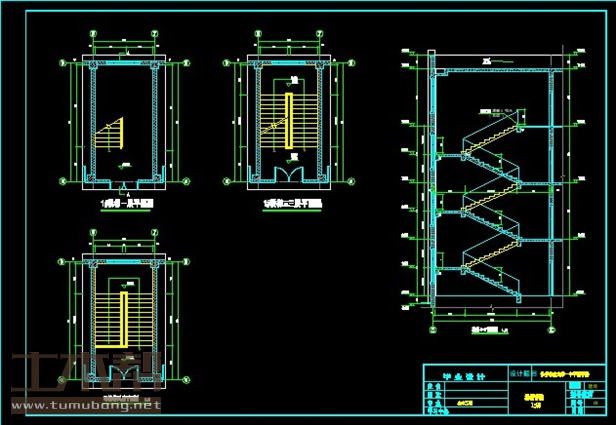

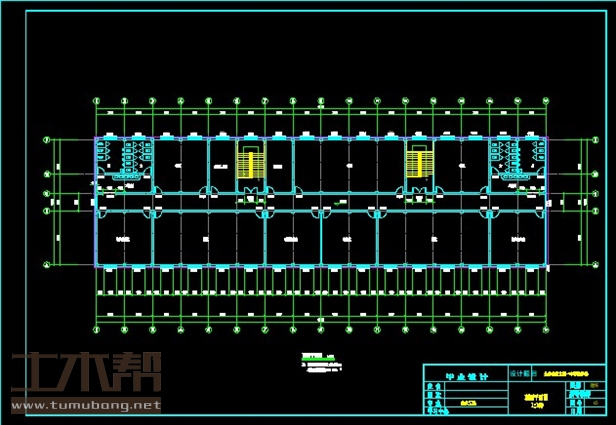

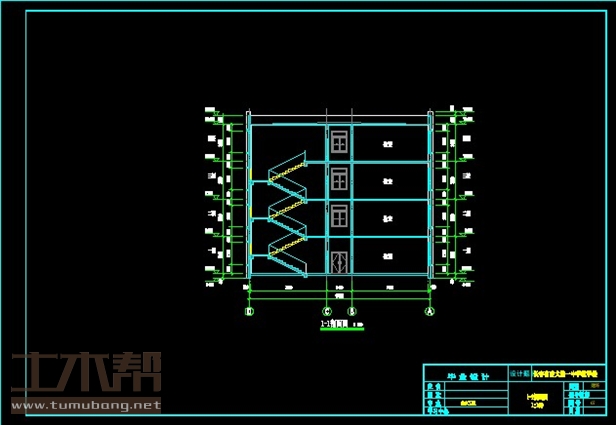

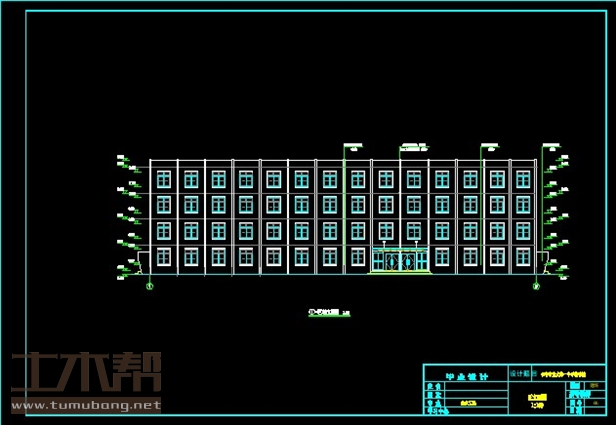

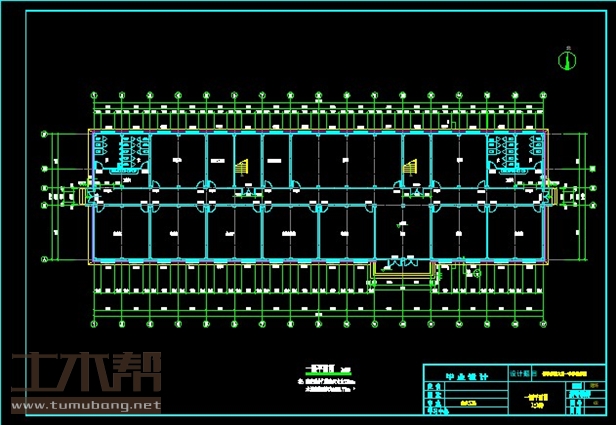

土木工程建筑设计施工图

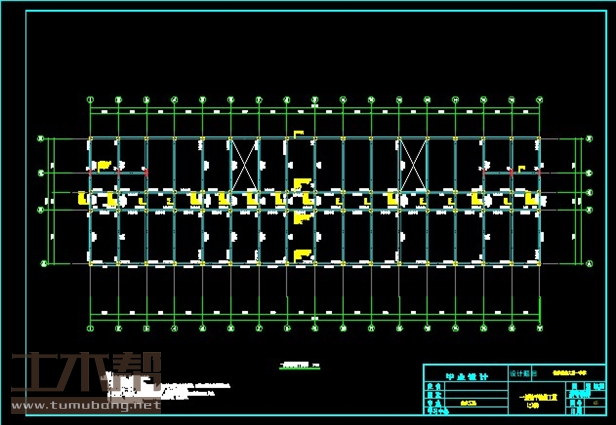

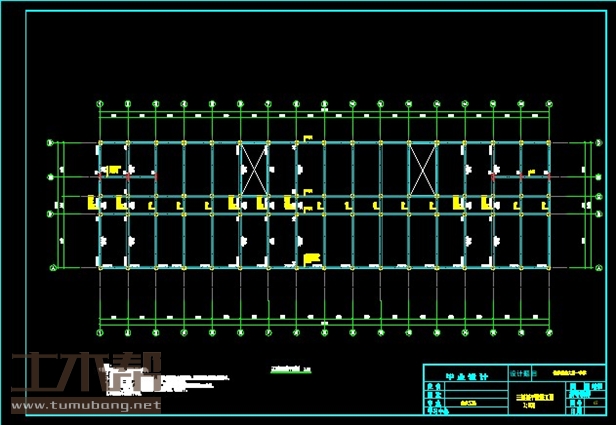

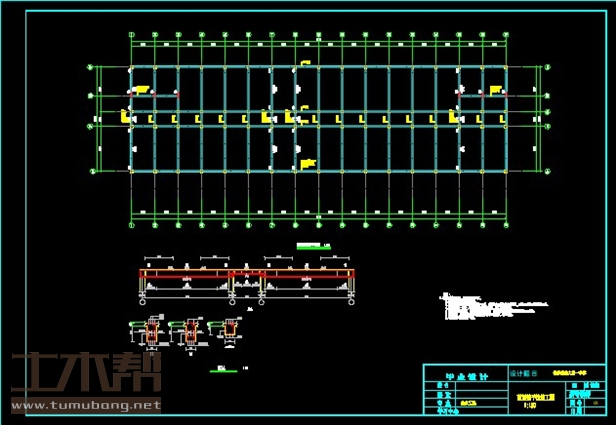

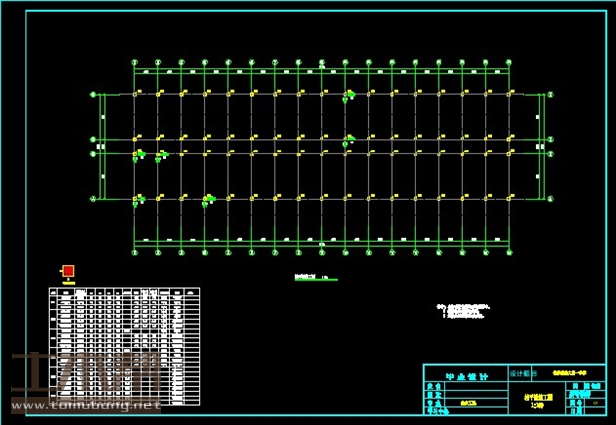

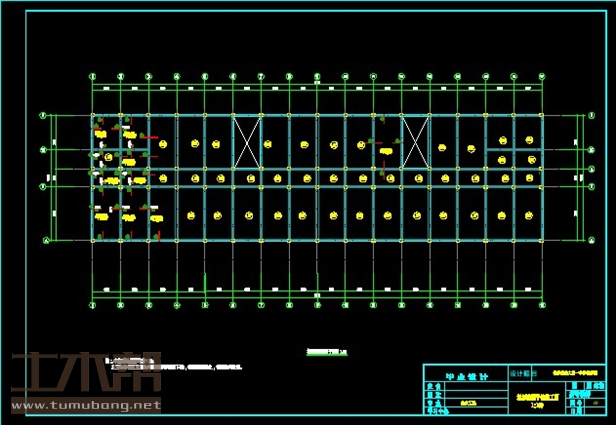

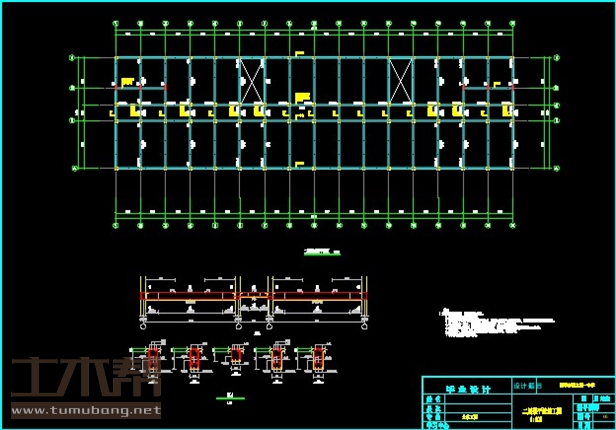

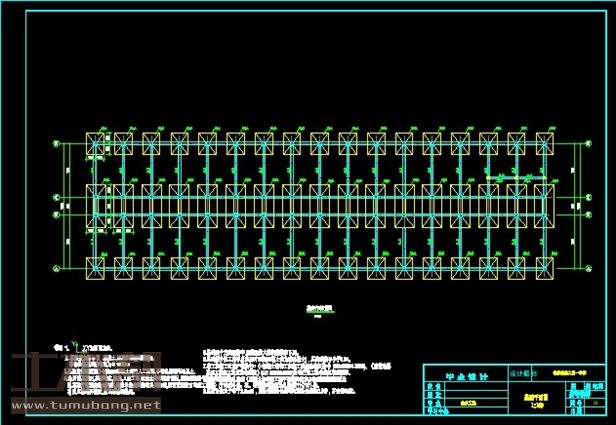

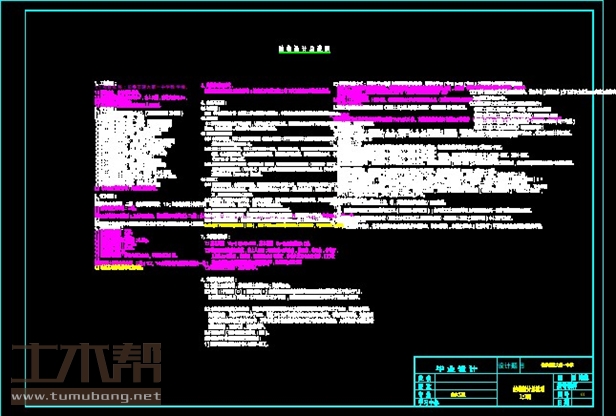

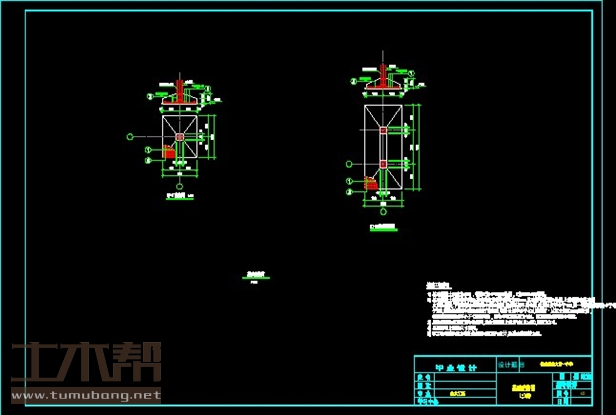

土木工程结构设计施工图

土木工程施工组织设计图
