5层框架结构宿舍楼,土木工程建筑毕业设计,长46.8米,宽21.6米,面积4337平方米
浏览量：793
收藏量：0
浏览量：793
收藏量：0

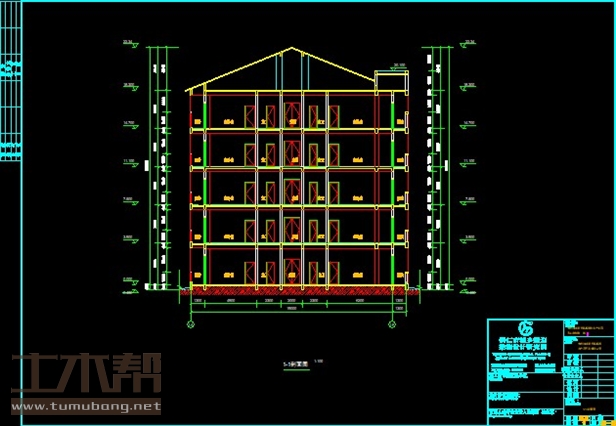

建筑长46.8m,宽21.60m.一榀框架首层层高3.9m,二至五层3.6m,柱距7.8m,3跨,跨度7.2m,2m,7.2m;
一层:楼梯间3.1m*7.2m*2间,门厅4.7m*7.2m*1间,阳台3.1m*1.3m*21间,客厅3.8m*4.9m*8间,厨房2.1m*2.4m*10间,主卧3.9m*4.9m*8间,衣帽间1.75m*2.3m*10间,主卫2.15m*2.3m*11间,主卧3.9m*6.2m*2间,客厅3.9m*6.2m*2间,主卧室4.7m*4.9m;
二至四层:楼梯间3.1m*7.2m*2间,主卧4.7m*4.9m*1间,阳台3.1m*1.3m*21间,客厅3.8m*4.9m*8间,厨房2.1m*2.4m*10间,主卧3.9m*4.9m*8间,衣帽间1.75m*2.3m*10间,主卫2.15m*2.3m*12间,主卧3.9m*6.2m*2间,客厅3.9m*6.2m*2间,主卧室4.7m*4.9m;
五层:楼梯间3.1m*7.2m*2间,主卧4.7m*4.9m*1间,阳台3.1m*1.3m*17间,客厅3.8m*4.9m*6间,厨房2.1m*2.4m*8间,主卧3.9m*4.9m*6间,衣帽间1.75m*2.3m*8间,主卫2.15m*2.3m*10间,主卧3.9m*6.2m*2间,客厅3.9m*6.2m*2间,主卧室4.7m*4.9m,露台7.8m*8.5m*2间;
