6层框架结构办公楼,土木工程结构毕业设计,长50.8米,宽18.6米,面积5669平方米

土木工程建筑设计说明书

建筑长50.8m,宽18.6m.一榀框架首层层高3.6m,二至六层层高3.3m,3跨,跨度7.5m,3.2m,7.5m;
一层:休息室7.2m*7.5m*1间,小办公室3.6m*7.5m*5间,接待室3.6m*7.5m*2间,门厅7.2m*7.5m*1间,门卫室3.6m*7.5m*1间,大会议室7.2m*18.6m*1间,库房7.2m*7.5m*1间,杂物间3.6m*7.5m*1间,男卫生间3.6m*7.5m*1间,女卫生间3.6m*7.5m*1间,楼梯间3.6m*7.5m*2间,电梯间2.7m*2.4m*2间,弱电房1.35m*2.4m*1间,强电房1.35m*2.4m*1间,茶水间3.6m*7.5m*1间,打印室3.6m*7.5m*1间,配电间3.6m*7.5m*1间;
二层:办公室7.2m*7.5m*1间,小办公室3.6m*7.5m*8间,员工办公室10.8m*7.5m*1间,大会议室7.2m*18.6m*1间,杂物间3.6m*7.5m*1间,打印室3.6m*7.5m*1间,男卫生间3.6m*7.5m*1间,女卫生间3.6m*7.5m*1间,楼梯间3.6m*7.5m*2间,电梯间2.7m*2.4m*2间,弱电房1.35m*2.4m*1间,强电房1.35m*2.4m*1间,茶水间3.6m*7.5m*1间;
三至六层:办公室7.2m*7.5m*1间,档案室3.6m*7.5m*1间,小办公室3.6m*7.5m*10间,员工办公室10.8m*7.5m*1间,办公室7.2m*7.5m*1间,会议室7.2m*7.5m*1间,打印室3.6m*7.5m*1间,男卫生间3.6m*7.5m*1间,女卫生间3.6m*7.5m*1间,楼梯间3.6m*7.5m*2间,电梯间2.7m*2.4m*2间,弱电房1.35m*2.4m*1间,强电房1.35m*2.4m*1间,茶水间3.6m*7.5m*1间;

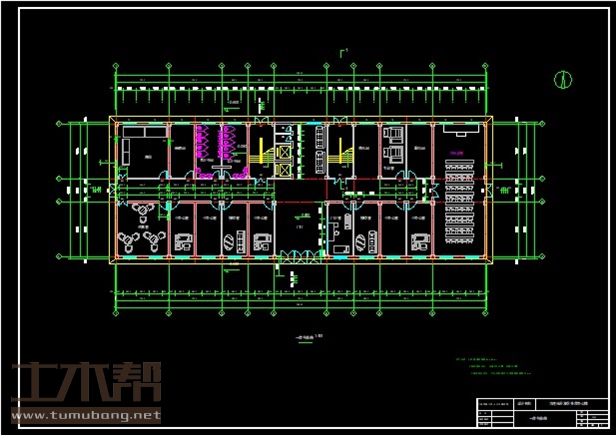

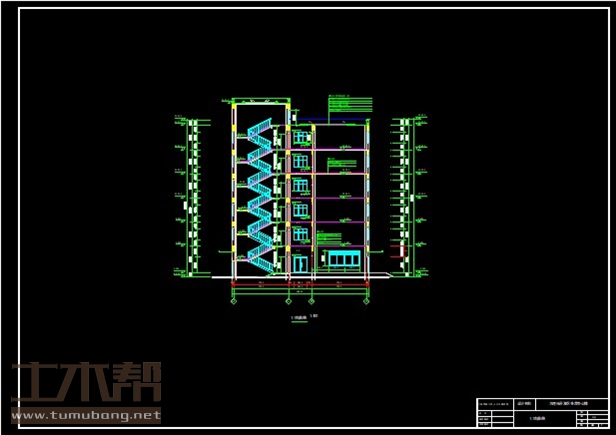

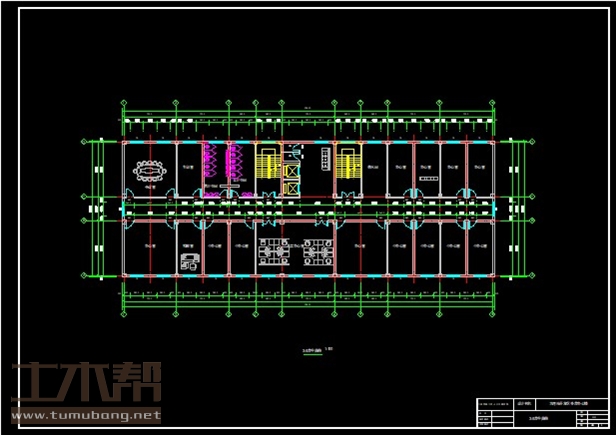

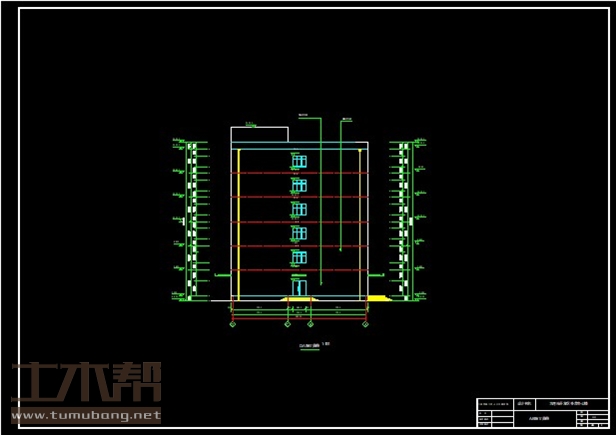

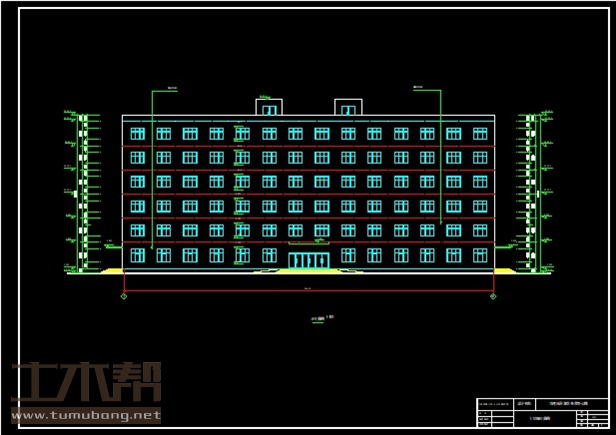

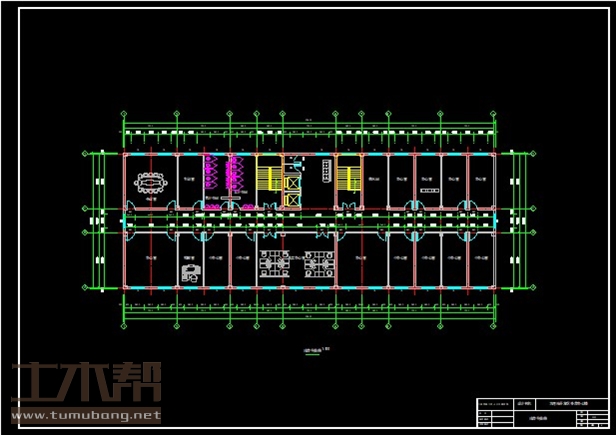

土木工程建筑设计施工图

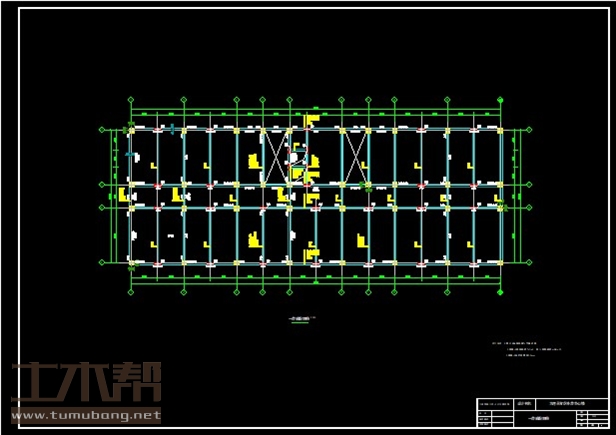

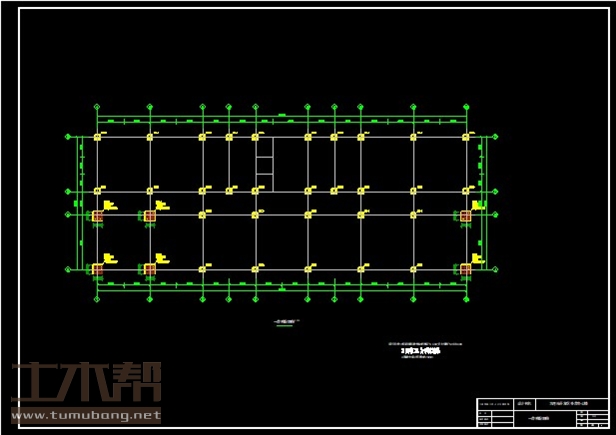

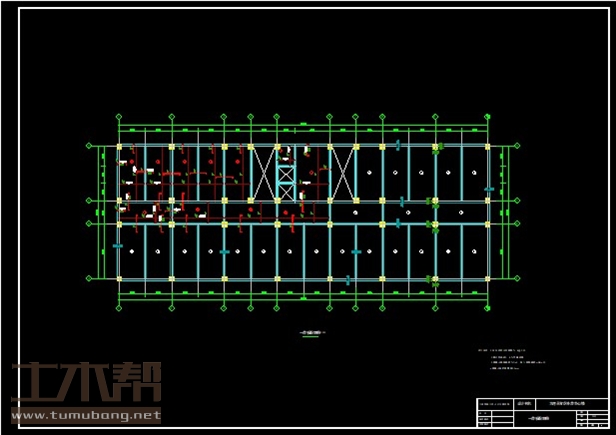

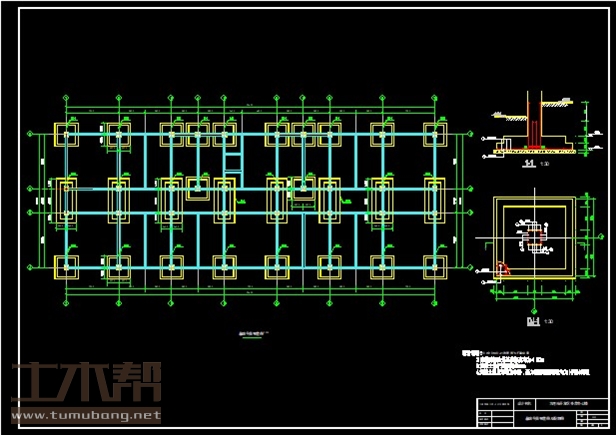

土木工程结构设计施工图

土木工程施工组织设计图
