9层框架结构旅馆,土木工程建筑结构毕业设计,长65.5米,宽17.75米,面积10464平方米

土木工程建筑设计说明书

建筑长65.5m,宽17.75m.一榀框架层高3.9m,柱距7.2m,3跨,跨度7.2m,2.7m,7.2m;
一层:餐厅14.4m*9.9m*1间,超市3.6m*7.2m*1间,门厅18m*7.2m*1间,票务室3.6m*7.2m*1间,电话间3.6m*7.2m*1间,办公室7.2m*7.2m*1间,总务仓库7.2m*7.2m*1间,消防室7.2m*7.2m*1间,厨房14.4m*7.2m*1间,楼梯间3.6m*7.2m*2间,电梯间2.4m*2.4m*2间,会客厅14.4m*7.2m*1间,女厕3.6m*7.2m*1间,男厕3.6m*7.2m*1间,维修间18m*7.2m*1间,杂物间3.6m*7.2m*1间,医疗室3.6m*7.2m*1间,变电配电室7.2m*7.2m*1间;
二层:四人间3.6m*7.2m*10间,双人间3.6m*7.2m*12间,单人间3.6m*7.2m*6间,楼梯间3.6m*7.2m*2间,电梯间2.4m*2.4m*2间,浴室3.6m*7.2m*2间,女厕3.6m*7.2m*1间,男厕3.6m*7.2m*1间;
三层:四人间3.6m*7.2m*10间,双人间3.6m*7.2m*12间,单人间3.6m*7.2m*6间,楼梯间3.6m*7.2m*2间,电梯间2.4m*2.4m*2间,浴室3.6m*7.2m*2间,女厕3.6m*7.2m*1间,男厕3.6m*7.2m*1间;
四层:四人间3.6m*7.2m*10间,双人间3.6m*7.2m*12间,单人间3.6m*7.2m*6间,楼梯间3.6m*7.2m*2间,电梯间2.4m*2.4m*2间,浴室3.6m*7.2m*2间,女厕3.6m*7.2m*1间,男厕3.6m*7.2m*1间;
五层:四人间3.6m*7.2m*10间,双人间3.6m*7.2m*12间,单人间3.6m*7.2m*6间,楼梯间3.6m*7.2m*2间,电梯间2.4m*2.4m*2间,浴室3.6m*7.2m*2间,女厕3.6m*7.2m*1间,男厕3.6m*7.2m*1间;
六层:四人间3.6m*7.2m*10间,双人间3.6m*7.2m*12间,单人间3.6m*7.2m*6间,楼梯间3.6m*7.2m*2间,电梯间2.4m*2.4m*2间,浴室3.6m*7.2m*2间,女厕3.6m*7.2m*1间,男厕3.6m*7.2m*1间;
七层:四人间3.6m*7.2m*10间,双人间3.6m*7.2m*12间,单人间3.6m*7.2m*6间,楼梯间3.6m*7.2m*2间,电梯间2.4m*2.4m*2间,浴室3.6m*7.2m*2间,女厕3.6m*7.2m*1间,男厕3.6m*7.2m*1间;
八层:四人间3.6m*7.2m*10间,双人间3.6m*7.2m*12间,单人间3.6m*7.2m*6间,楼梯间3.6m*7.2m*2间,电梯间2.4m*2.4m*2间,浴室3.6m*7.2m*2间,女厕3.6m*7.2m*1间,男厕3.6m*7.2m*1间;
九层:四人间3.6m*7.2m*10间,双人间3.6m*7.2m*12间,单人间3.6m*7.2m*6间,楼梯间3.6m*7.2m*2间,电梯间2.4m*2.4m*2间,浴室3.6m*7.2m*2间,女厕3.6m*7.2m*1间,男厕3.6m*7.2m*1间.

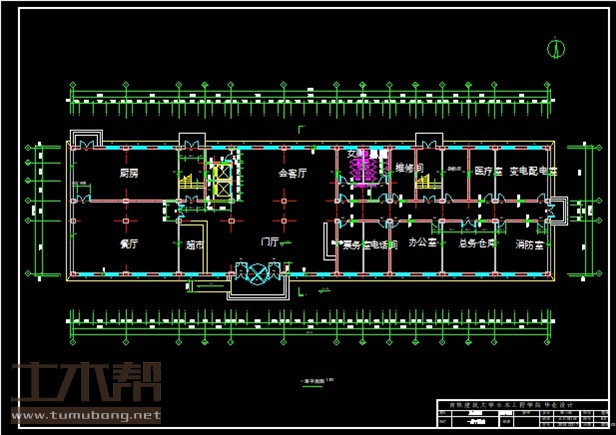

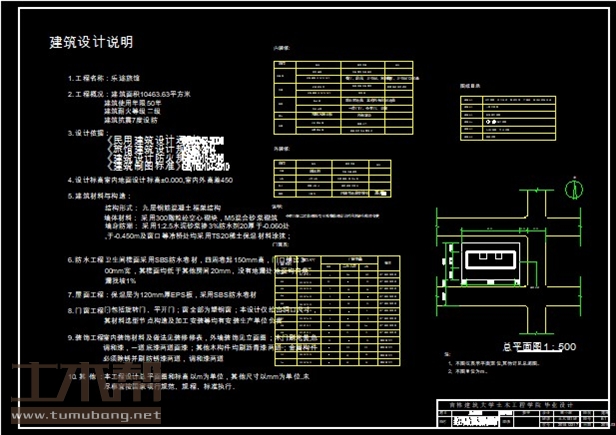

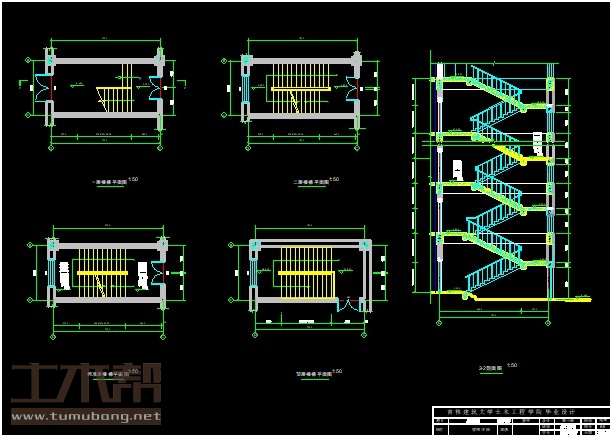

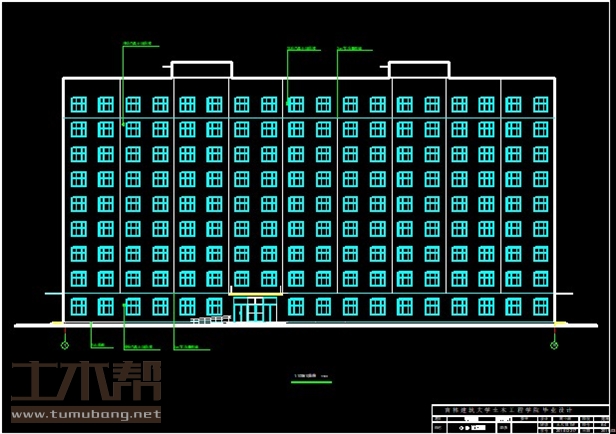

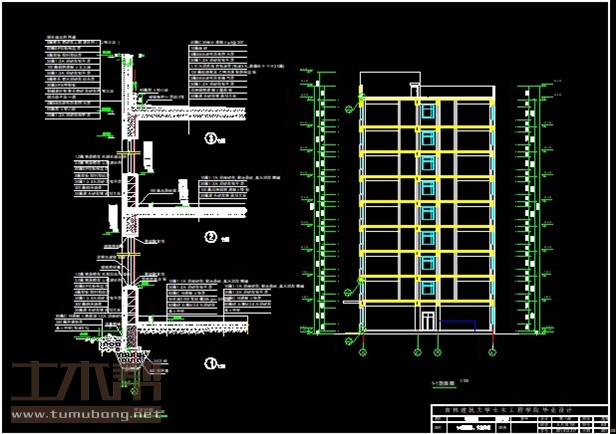

土木工程建筑设计施工图

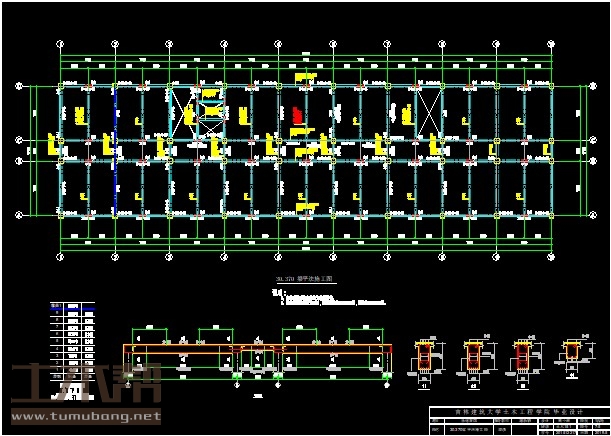

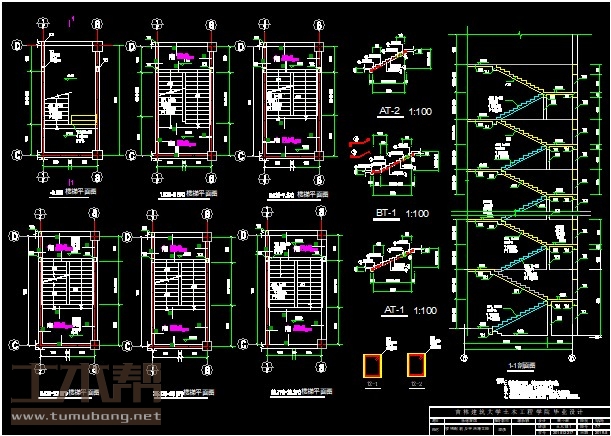

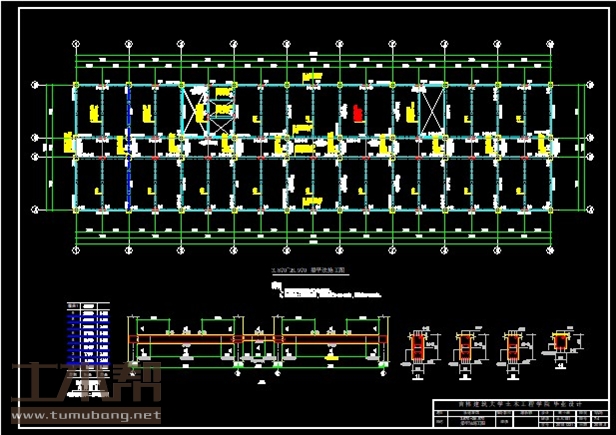

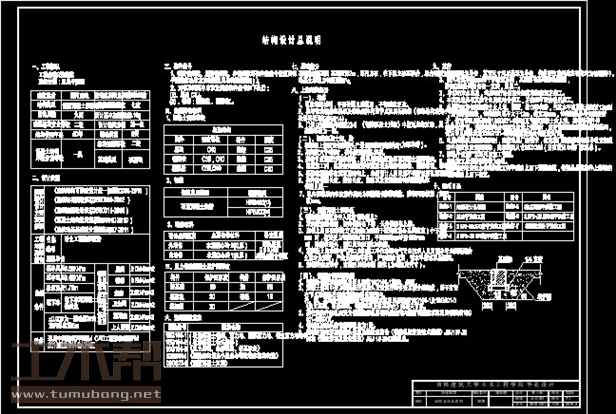

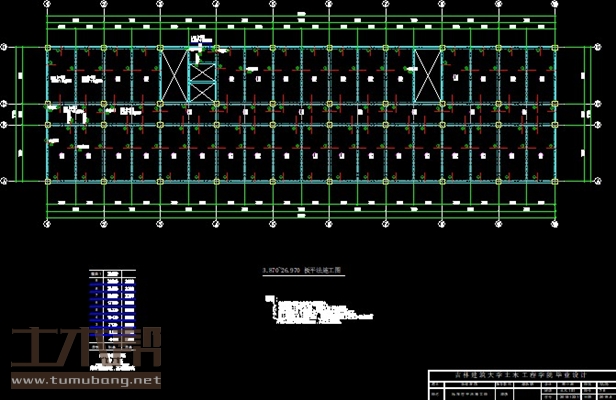

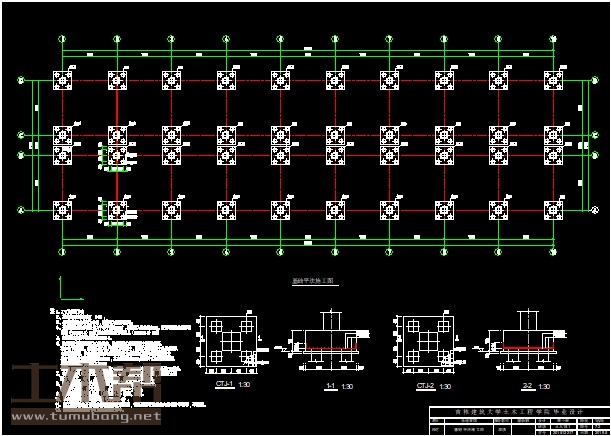

土木工程结构设计施工图

土木工程施工组织设计图
