5层框架结构教学楼,土木工程建筑结构毕业设计,长50米,宽17米,面积4250平方米
浏览量:705
收藏量:0
浏览量:705
收藏量:0

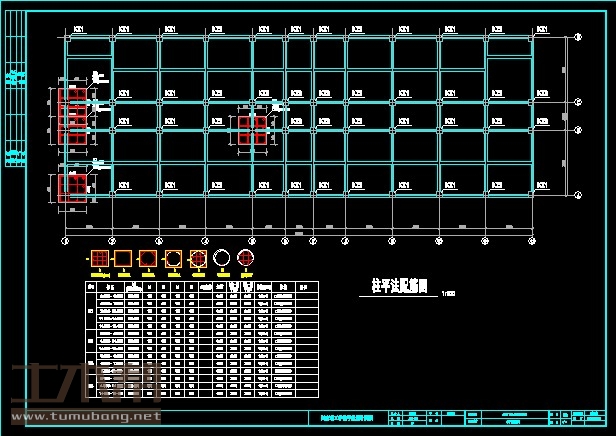

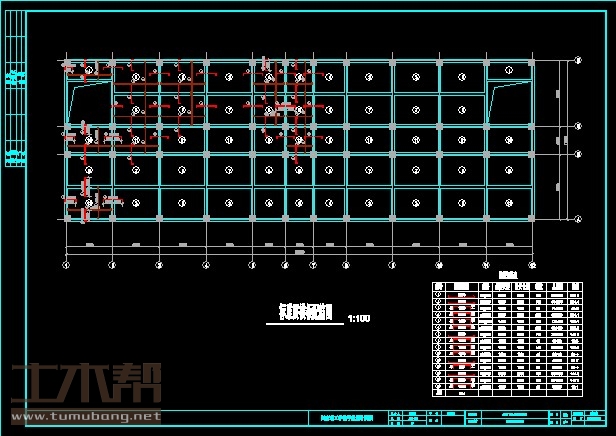

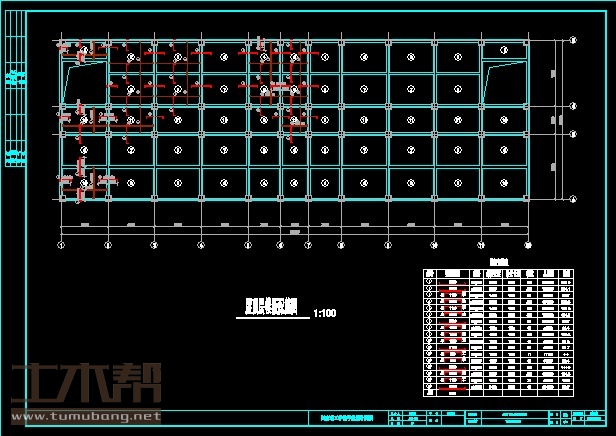

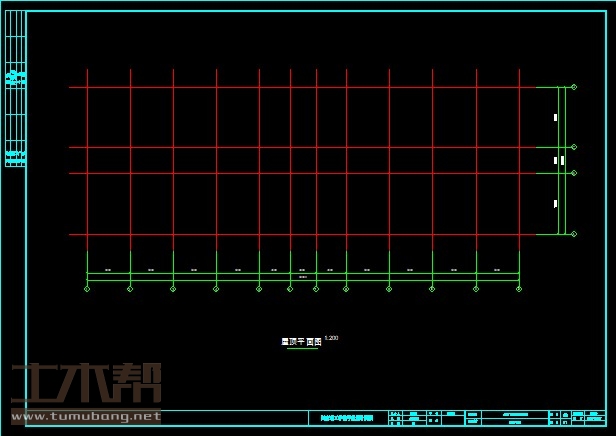

建筑长50m,宽17m.一榀框架层高4m,柱距5m,3跨,跨度7m,3m,7m;

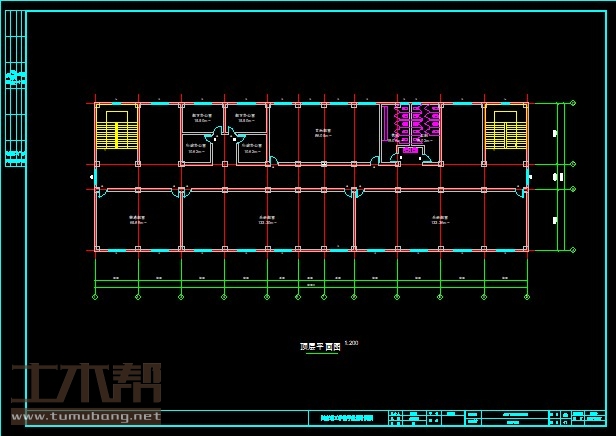

一层:实验室10m*7m*4间,大厅10m*17m*1间,楼梯间5m*7m*2间,仪器准备室5m*7m*2间,杂物间3.5m*3.5m*2间,办公室5m*3.5m*1间,体育器材室5m*3.5m*1间,楼管室3m*3.5m*1间,值班室3m*3.5m*1间,男厕3.5m*7*1间,女厕3.5m*7m*1间;
二层:普通教室10m*7m*3间,计算机房20m*7m*1间,楼梯间5m*7m*2间,行政办公室3.5m*3.5m*2间,教学办公室5m*3.5m*2间,普通教室13m*7m*1间,男厕3.5m*7*1间,女厕3.5m*7m*1间;
三层:普通教室10m*7m*3间,计算机房20m*7m*1间,楼梯间5m*7m*2间,行政办公室3.5m*3.5m*2间,教学办公室5m*3.5m*2间,普通教室13m*7m*1间,男厕3.5m*7*1间,女厕3.5m*7m*1间;
四层:普通教室10m*7m*3间,计算机房20m*7m*1间,楼梯间5m*7m*2间,行政办公室3.5m*3.5m*2间,教学办公室5m*3.5m*2间,普通教室13m*7m*1间,男厕3.5m*7*1间,女厕3.5m*7m*1间;
五层:普通教室10m*7m*1间,合班教室20m*7m*2间,楼梯间5m*7m*2间,行政办公室3.5m*3.5m*2间,教学办公室5m*3.5m*2间,音乐教室13m*7m*1间,男厕3.5m*7*1间,女厕3.5m*7m*1间.
