3层框架结构不限,土木工程建筑结构毕业设计,长44米,宽41.25米,面积5258平方米

土木工程建筑设计说明书

建筑长44m,宽41.25m.一榀框架层高4.8m,柱距8m,5跨,跨度8m,8m,8m,8m,8m;
一层:烹调及切配12m*8m*1间,保洁间4.4m*8m*1间,洗消间3.6m*8m*1间,楼梯间8m*4m*1间,外廊16m*8m*1间,面点房5.6m*4m*1间,售菜窗4.4m*16m*1间,蒸煮间5.6m*8m*1间,粗加工5.6m*4m*1间,主食库房5.6m*4m*1间,二次更衣4.4m*4m*1间,副食库房5.6m*4m*1间,门厅12.4m*3m*1间,更衣2m*5m*2间,办公4m*3.2m*1间,值班4m*1.8m*1间,管道井1.3m*3.1m*1间,电梯3.1m*3.1m*1间,楼梯间3.6m*8m*1间,IC卡充值2.4m*3.2m*2间,学生食堂27.6m*34.2m*1间,设备平台1.8m*16m*1间,外廊4m*32m*1间,楼梯间4m*8m*1间;
二层:烹调及切配12m*8m*1间,保洁间4.4m*8m*1间,洗消间3.6m*8m*1间,楼梯间8m*4m*1间,外廊16m*8m*1间,面点房5.6m*4m*1间,售菜窗4.4m*16m*1间,蒸煮间5.6m*8m*1间,粗加工5.6m*4m*1间,主食库房5.6m*4m*1间,二次更衣4.4m*4m*1间,副食库房5.6m*4m*1间,走道12.4m*3m*1间,更衣2m*5m*2间,办公4m*3.2m*1间,值班4m*1.8m*1间,管道井1.3m*3.1m*1间,电梯3.1m*3.1m*1间,楼梯间3.6m*8m*1间,学生食堂32.5m*34.2m*1间,设备平台1.8m*16m*1间,外廊4m*32m*1间,楼梯间4m*8m*1间;
三层:烹调及切配10.8m*8m*1间,保洁间、洗消间8m*4m*1间,楼梯间8m*4m*1间,售菜窗4.4m*12m*1间,蒸煮间5.6m*4m*1间,粗加工5.6m*4m*1间,二次更衣4.4m*4m*1间,包厢5.6m*4m*3间,楼梯间6.9m*6m*1间,面点房4.4m*4m*1间,副食库房4.4m*4m*1间,主食库房4.4m*4m*1间,卫生间2.34m*3m*1间,包厢4m*5m*2间,管道井1.3m*3.1m*1间,电梯3.1m*3.1m*1间,楼梯间3.6m*8m*1间,更衣2m*5.64m*2间,教工食堂32.5m*32.9m*1间,办公4m*4.1m*1间,值班4m*1.54m*1间,接待及休息室（暂定）8m*5.64m*1间,接待及休息室（暂定）8m*7.74m*1间,楼梯间4m*8m*1间.

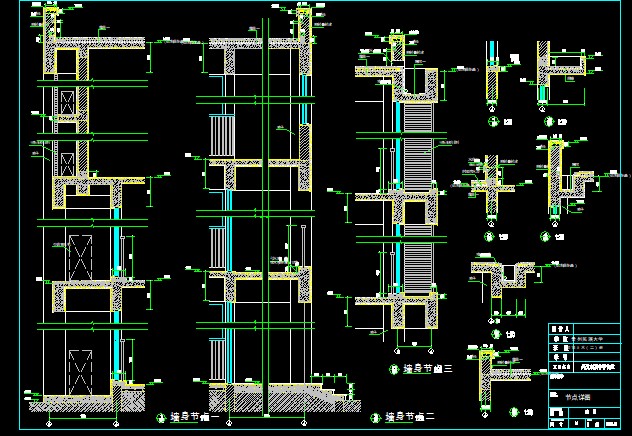

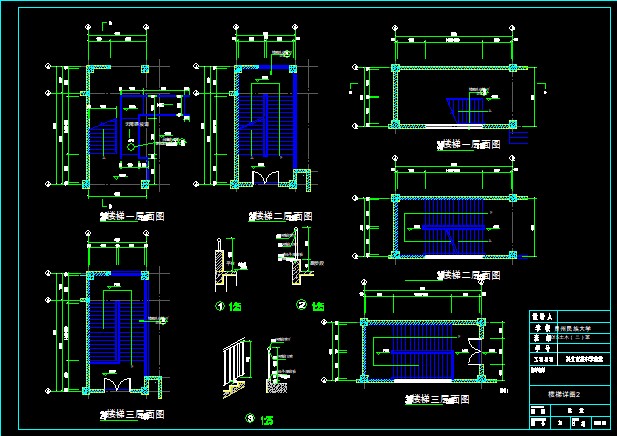

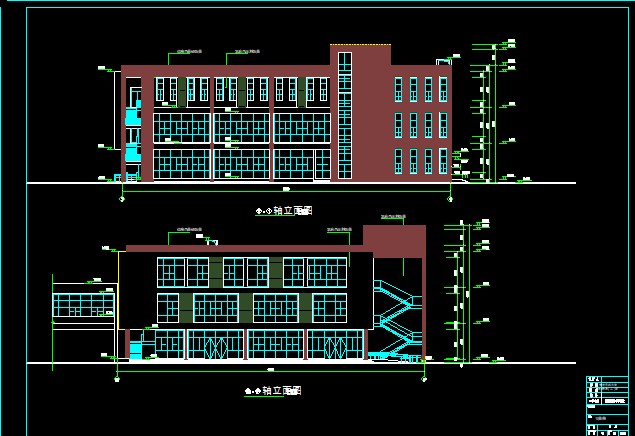

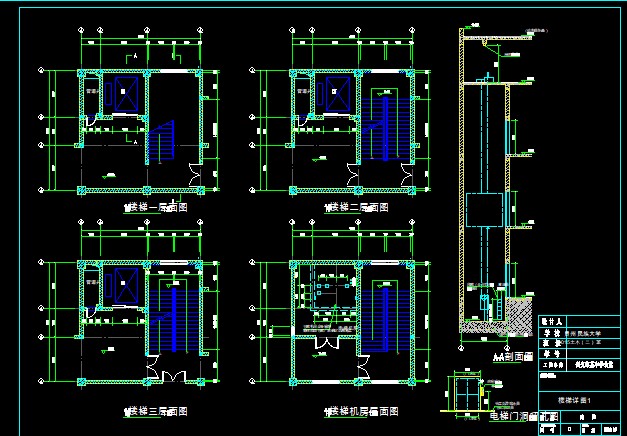

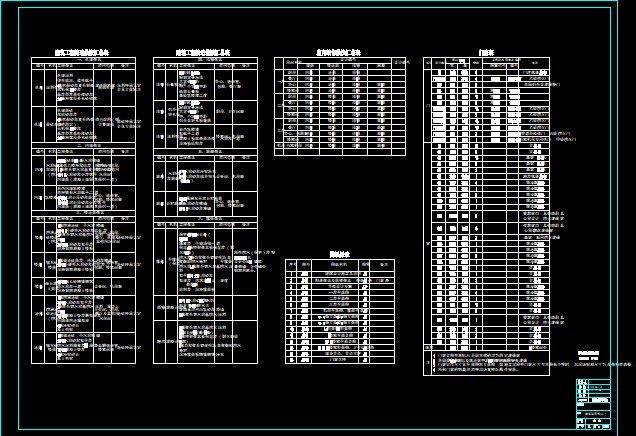

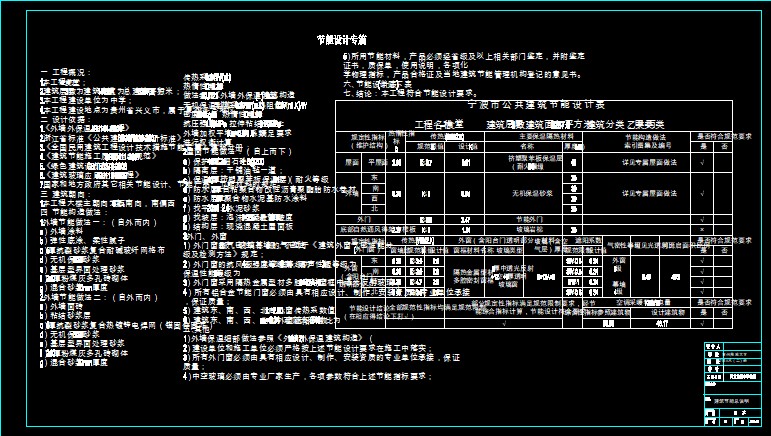

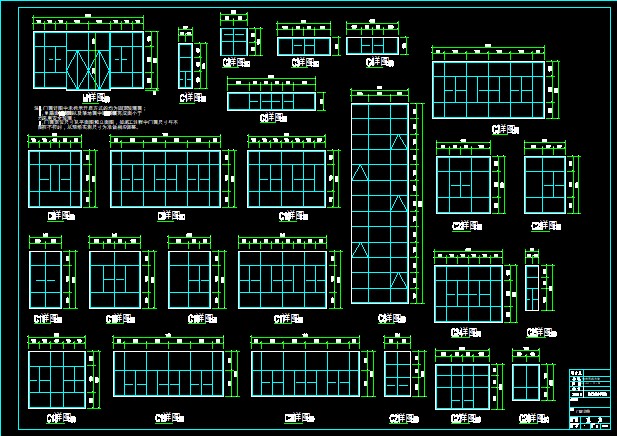

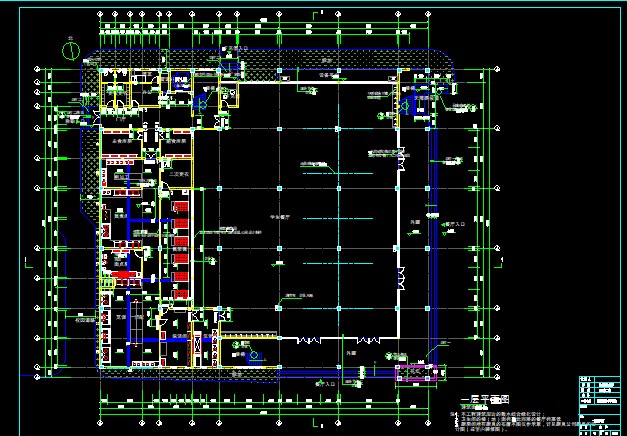

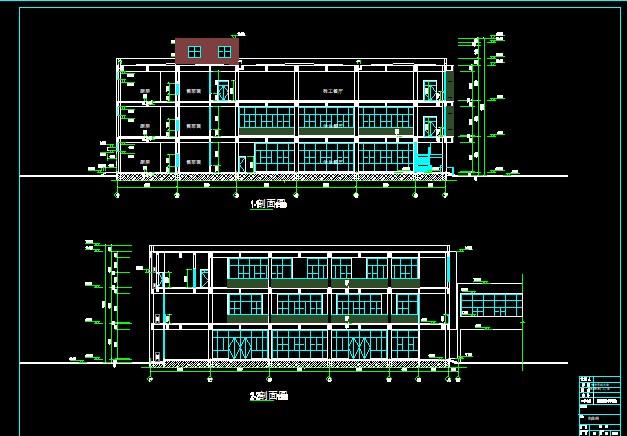

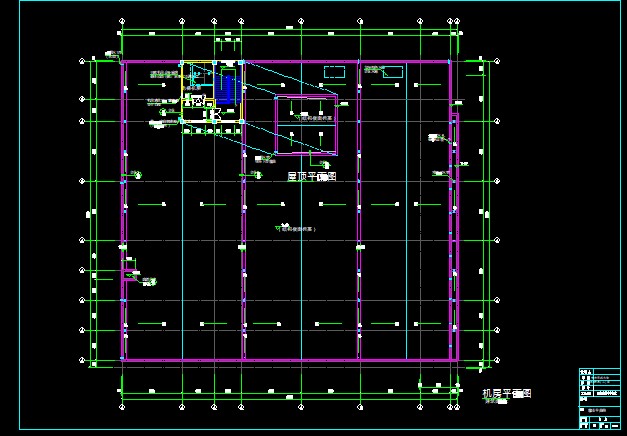

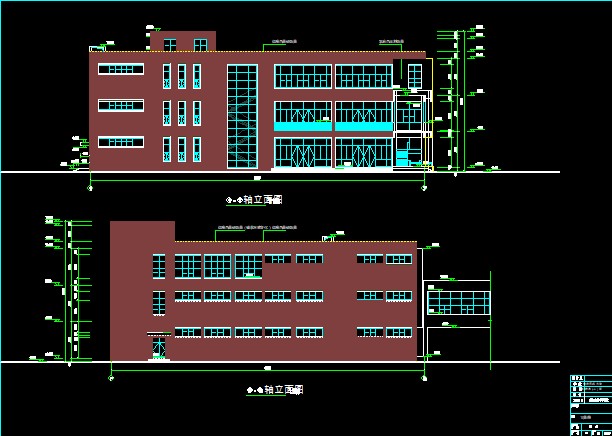

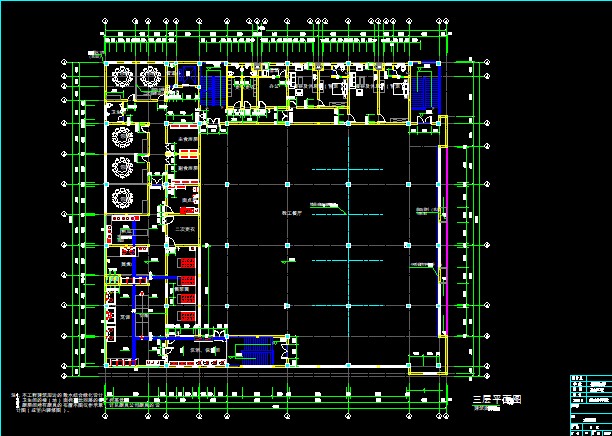

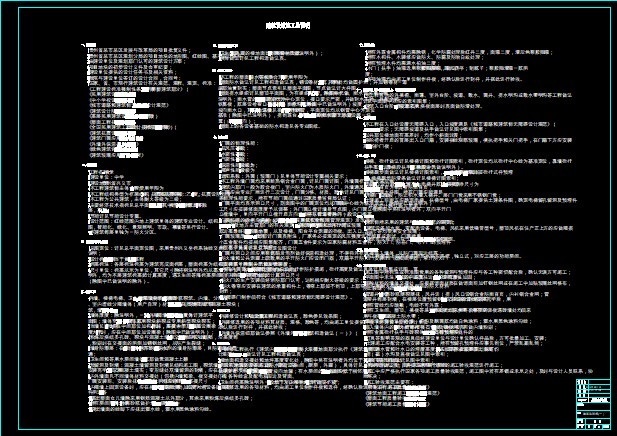

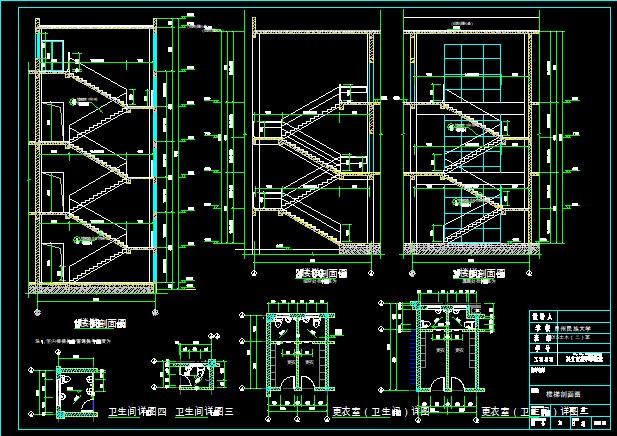

土木工程建筑设计施工图

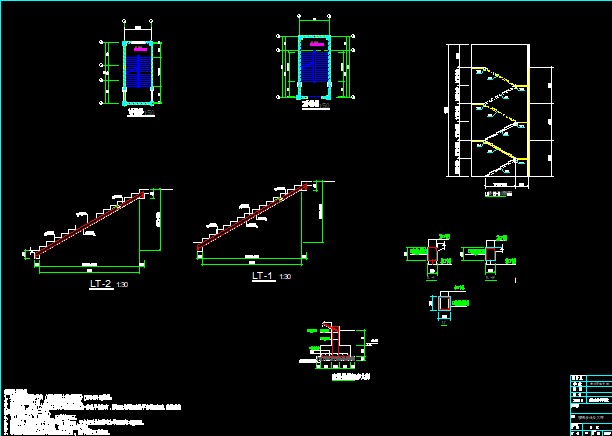

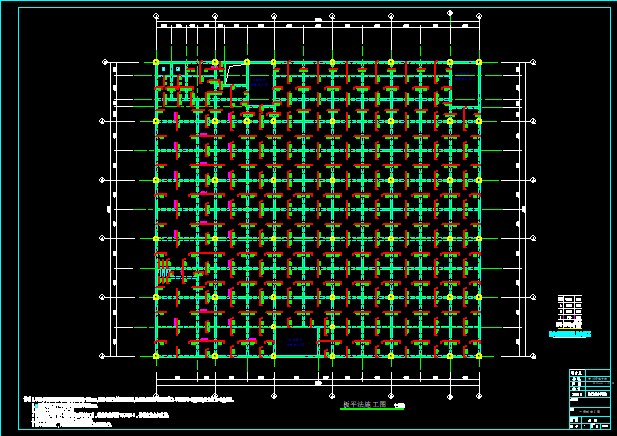

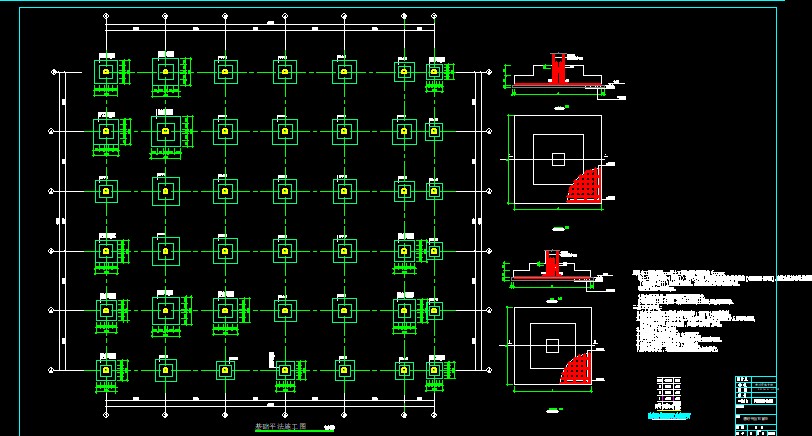

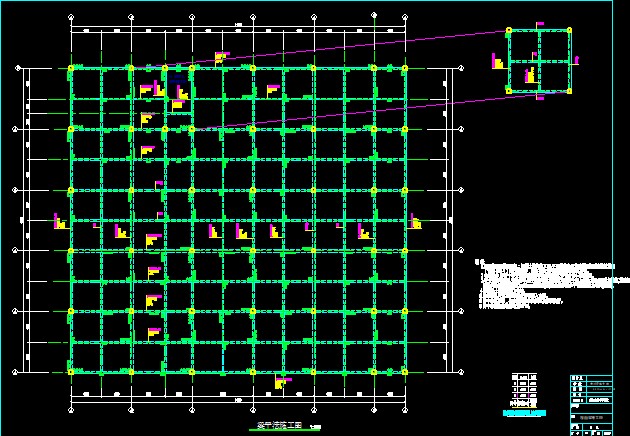

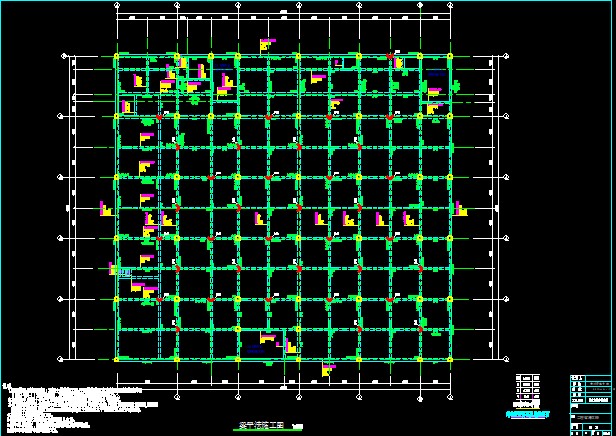

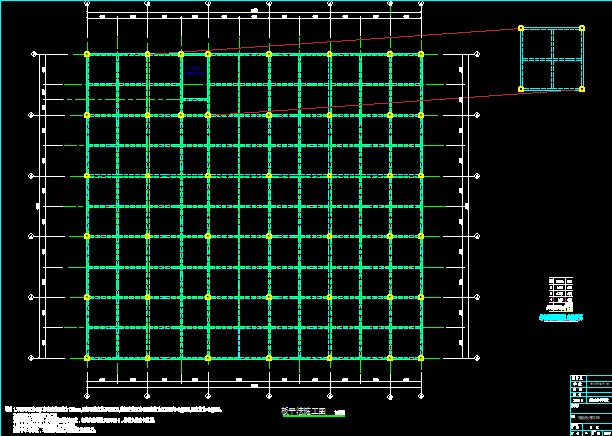

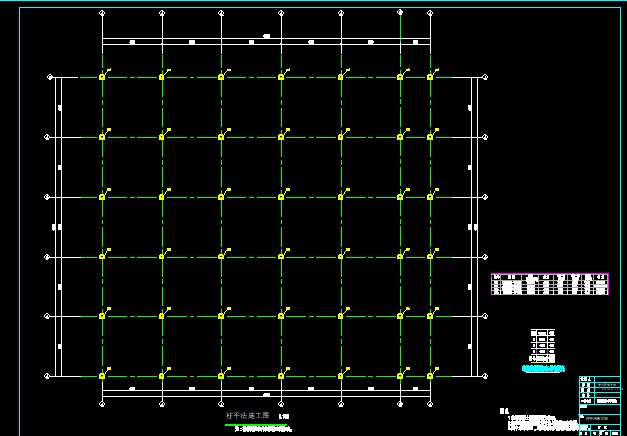

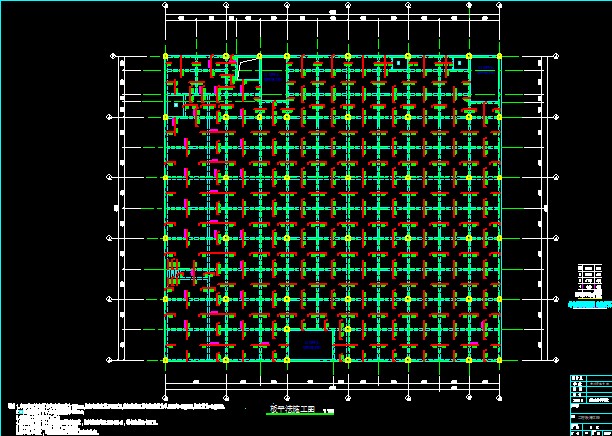

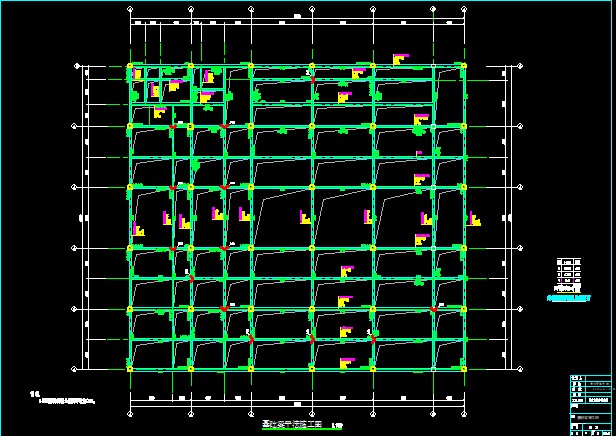

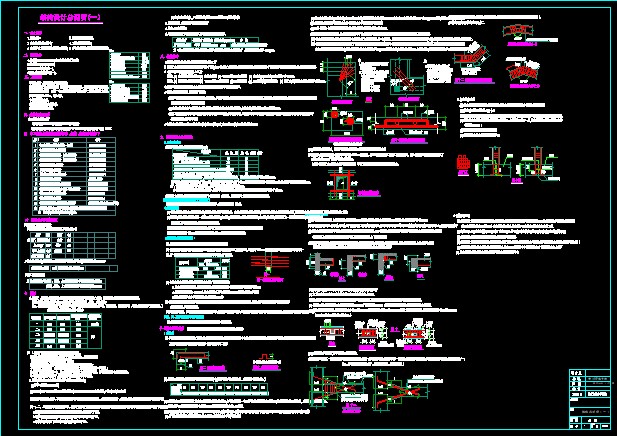

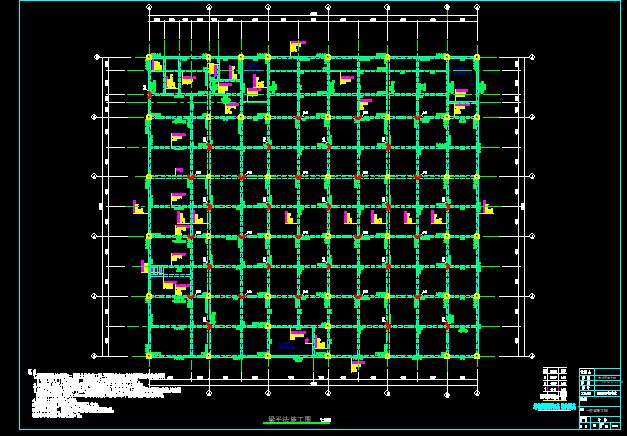

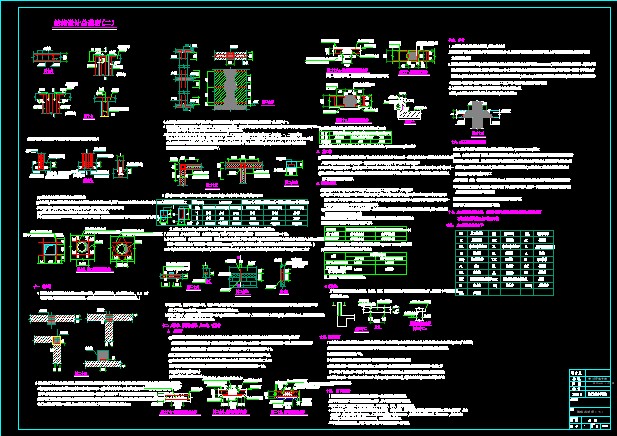

土木工程结构设计施工图

土木工程施工组织设计图
