5层框架结构教学楼,土木工程建筑结构毕业设计,长50.9米,宽19.7米,面积5014平方米

土木工程建筑设计说明书

建筑长50.9m,宽19.7m.一榀框架层高3.9m,柱距7.2m,3跨,跨度8.4m,2.4m,8.4m;

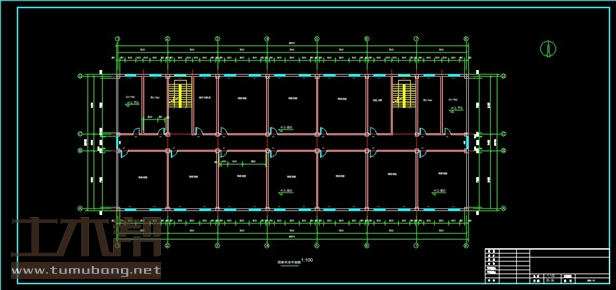

一层:电化教室10.8m*8.4m*1间,化学实验室10.8m*8.4m*1间,大厅7.2m*8.4m*1间,门卫室3.6m*8.4m*1间,物理实验室10.8m*8.4m*1间,数学教研室7.2m*8.4m*1间,女卫生间3.6m*8.4m*2间,男卫生间3.6m*8.4m*2间,楼梯间3.6m*8.4m*2间,配电室13.6m*8.4m*1间,语文教研室7.2m*8.4m*1间,英语教研室7.2m*8.4m*1间,化学实验室10.8m*8.4m*1间;
二层:电化教室10.8m*8.4m*1间,生物实验室10.8m*8.4m*1间,声乐教室10.8m*8.4m*1间,物理实验室10.8m*8.4m*1间,物理教研室7.2m*8.4m*1间,女卫生间3.6m*8.4m*2间,男卫生间3.6m*8.4m*2间,楼梯间3.6m*8.4m*2间,教具仓库3.6m*8.4m*1间,化学教研室7.2m*8.4m*1间,生物教研室7.2m*8.4m*1间,生物实验室10.8m*8.4m*1间;
三层:普通教室7.2m*8.4m*10间,女卫生间3.6m*8.4m*2间,男卫生间7.2m*8.4m*2间,楼梯间3.6m*8.4m*2间,教具仓库3.6m*8.4m*1间,教师休息室3.6m*8.4m*1间;
四层:普通教室7.2m*8.4m*10间,女卫生间3.6m*8.4m*2间,男卫生间7.2m*8.4m*2间,楼梯间3.6m*8.4m*2间,教具仓库3.6m*8.4m*1间,教师休息室3.6m*8.4m*1间;
五层:普通教室7.2m*8.4m*10间,女卫生间3.6m*8.4m*2间,男卫生间7.2m*8.4m*2间,楼梯间3.6m*8.4m*2间,教具仓库3.6m*8.4m*1间,教休休息室3.6m*8.4m*1间.

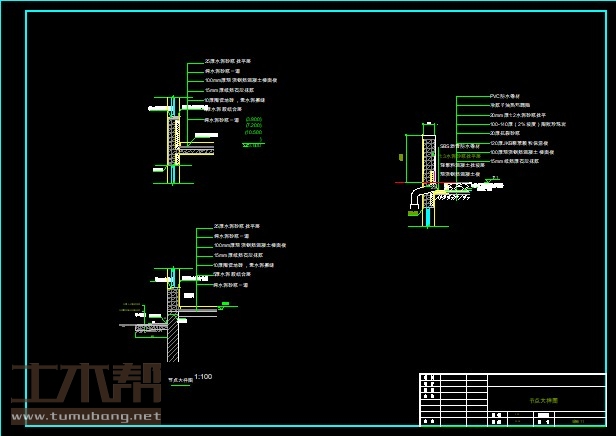

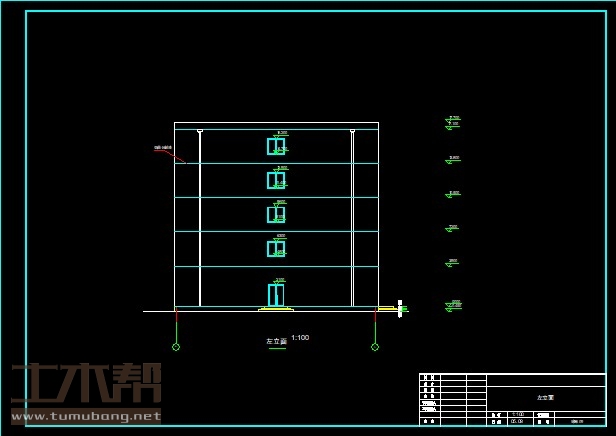

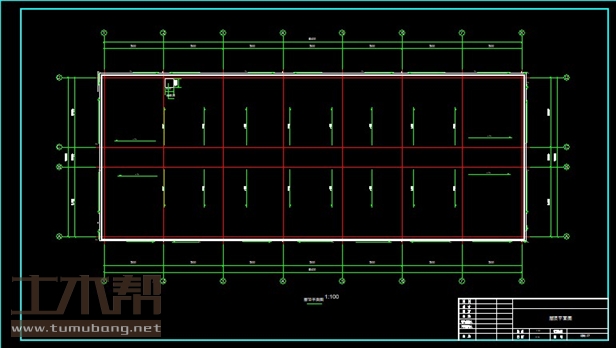

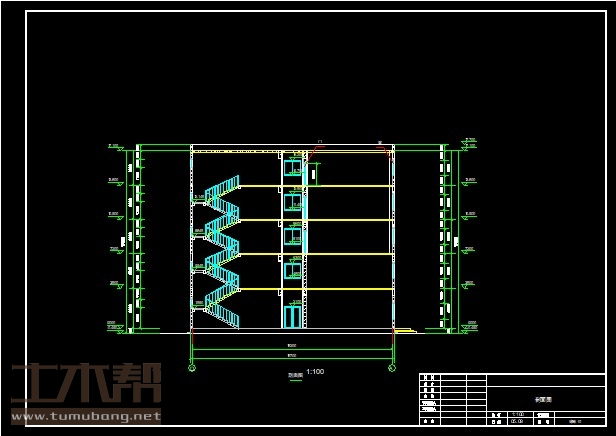

土木工程建筑设计施工图

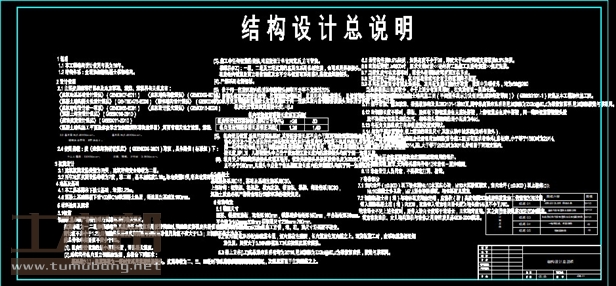

土木工程结构设计施工图

土木工程施工组织设计图
